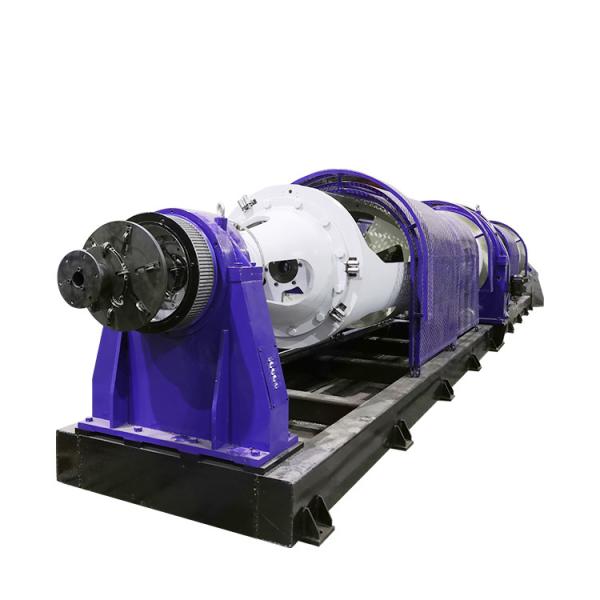

1+6 ACSR Tubular Stranding Machine With Three Big Bearing

Name: 16 ACSR Tubular Stranding Machine With Three Big Bearing
Brand: Beyde
Price: 1 USD

Quality 1+6 ACSR Tubular Stranding Machine With Three Big Bearing for sale

Brand Name : Beyde

Model Number : 630 1+6

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 200 set/year

Delivery Time : 90 days

Packaging Details : container

Usage : Stranding

Color : According to customer requirement

Name : Tubular stranding machine

Application : steel,aluminium,stranding steel wire,ACSR and AAAC,Al wire

Function : Stranding Wires

Taping head pitch : 1mm-630mm

Machine central height : 700mm

Central pay-off bobbin : PN400-PN630

Power : 220/380

Take-up bobbin size : PND800-PND1600

Material : Iron and steel

Plc : Siemens

Warranty : 12 Months

Contact Now

GOOD PERFORMANCE 1+6 TUBULAR STARNDING MACHINE (WITH THREE BIG BEARING)

Objectives:

This machine will be suitable for stranding 1+6 bare Al/Cu wire, ACSR and aluminum alloy wire.
This Machine will be suitable for Steel Twisting of ACSR Core Wire
This machine will be capable for AAC/AAAC/ACSR/COPPER STRANIDNG/INSULATED CORE TWISTING.
Capable for ACSR Conductor Stranding and Steel Twisting and Stay Wire and Guy Wire
High speed and good performance
Trouble free operation
Easy operation and maintenance

6.2.2.1	Name of Manufacturer	BEYDE TRADING
6.2.2.2	Country of Origin	CHINA
6.2.2.3	Country of Made	CHINA
6.2.2.4	Country of Shipment	CHINA TIANJIN
6.2.2.5	Model No. of the Machine	630/1+6
6.2.2.6	Stranding single wire diameter
	Aluminum Alloy	ø1.5－ø 3.5mm
	Aluminum	ø1.5－ø 5.29mm
	Copper wire	ø1.2－ø 4.5mm
	Mild Steel wire	ø1.2－ø 5.0mm
6.2.2.7	Max stranding diameter	Max Diameter 15mm
6.2.2.8	Speed of frame carriage
6.2.2.9	6 Bobbin Cage	Max 600 rpm
6.2.2.10	Haul off liner speed	18-125 m/min
6.2.2.11	Motor power of capstan	37 KW AC SIEMENS/ABB/ Schneider
6.2.2.12	Take up motor power	7.5 KW AC SIEMENS/ABB/ Schneider
6.2.2.13	Bobbin size inside frame carriage	PND630 Flange : 630MM Barrel : 350 MM ( Or as Required) Traverse : 400 MM Overall Width: 475 MM
6.2.2.14	Haul-off capstan size	Φ1500mm(Dual Wheel Grooved Capstan)
6.2.2.15	Stranding pitch (step-less)	30 -500mm ( Infinitely Variable)
6.2.2.16	Center pay-off reel type	630-1250mm
6.2.2.17	Take-up reel(column type)	PN800~PN1600(Buyer provide the drawing)
6.2.2.18	Total installation power	37KV
6.2.2.19	Regular running power consumption	To be mentioned by bidder
6.2.2.20	Compressed Air consumption	To be mentioned by bidder
6.2.2.21	Operation direction	As per BCSL requirement and It will be confirmed during signing of contract.
6.2.2.22	Noise Level	< 85 dBA (except for main motor)
6.2.2.23	Machine dimension L×W×H	25X3X0.7M
6.2.2.24	Height of center line of the equipment	745mm or Standard
6.2.2.25	Machine Main color	RAL 5012 Light blue or BCSL requirement
6.2.2.26	Bearings	NSK/FAG/NTN/SKF
